Studio

What is Studio?

Studio is the visual template builder. You design layouts here once, then content editors fill them in from the dashboard — no design skills required. Every template you save becomes available in the main Pilot feed.

Part 1 — Opening Studio

Steps:

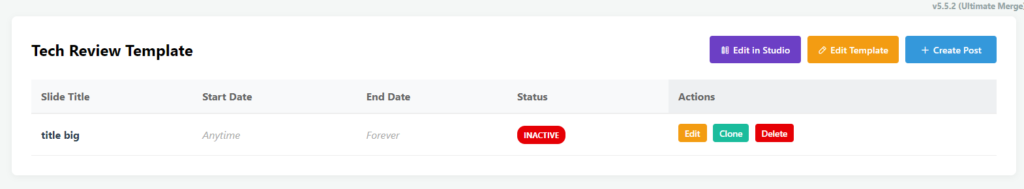

Log in to the Pilot dashboard
Click on a template you wish to edit
Click on Studio on the top right

Part 2 — The Interface at a Glance

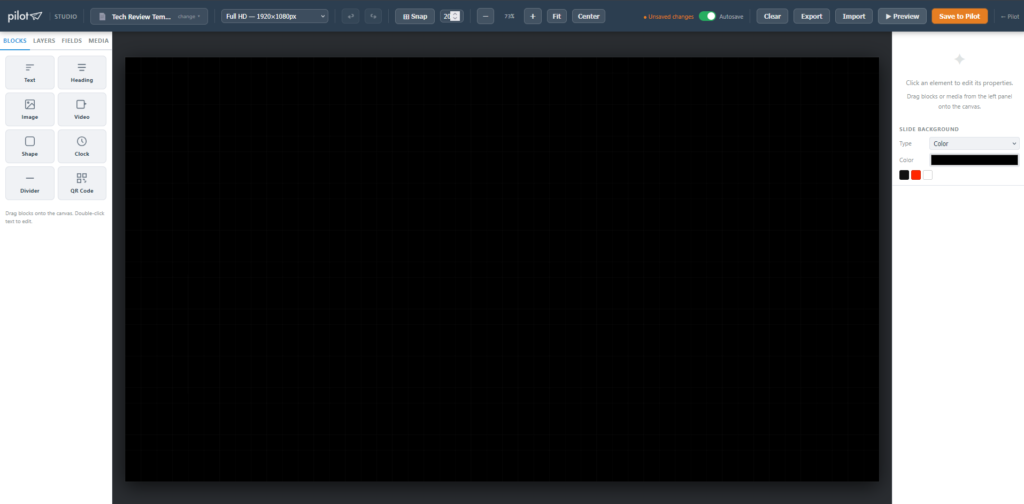

The Studio workspace is divided into four zones:

Zone	What it does
Top toolbar	Template selector, canvas size, zoom, undo/redo, save
Left panel	Blocks, Layers, Fields, Media tabs
Centre canvas	Your design area
Right panel	Properties for the selected element

Part 3 — Loading or Creating a Template

Option A — Open an existing template

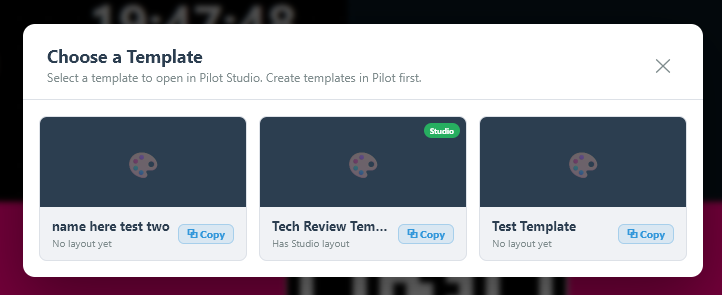

Click the template chip in the toolbar
Browse the list — your custom templates appear at the top, stock templates below
Click a template card to load it onto the canvas

Option B — Duplicate a template

Open the template picker
Hover over any template card — a ⧉ Copy button appears
Click it — a “Copy of …” version is immediately created and ready to edit

Option C — Import a layout file

Click Import in the top toolbar
Select a previously exported .json layout file
The canvas restores to that layout automatically

Part 4 — Setting the Canvas Size

The canvas defaults to 1920 × 1080 (16:9 landscape).

In the toolbar, find the W and H number inputs
Type your target resolution (e.g. 1080 × 1920 for portrait)
Click Apply

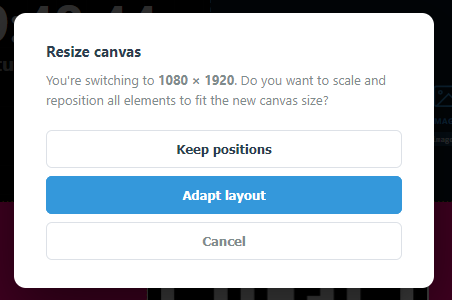

Choose Adapt layout (scales elements proportionally) or Keep positions (leaves elements in place)

Part 5 — Adding Elements (Blocks)

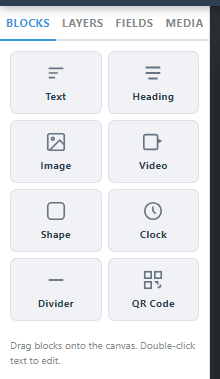

All content blocks live in the Blocks tab of the left panel.

Block	Use for
Text	Body copy, descriptions
Heading	Large titles
Image	Static or merge-tag-driven photos
Video	Background video or content clips
Shape	Coloured rectangles, dividers, overlays
Clock	Live time display
Line	Horizontal or vertical separators
QR Code	Auto-generated QR from a URL or merge tag

To place a block:

Drag it from the Blocks panel and drop it anywhere on the canvas, OR

Part 6 — Editing an Element

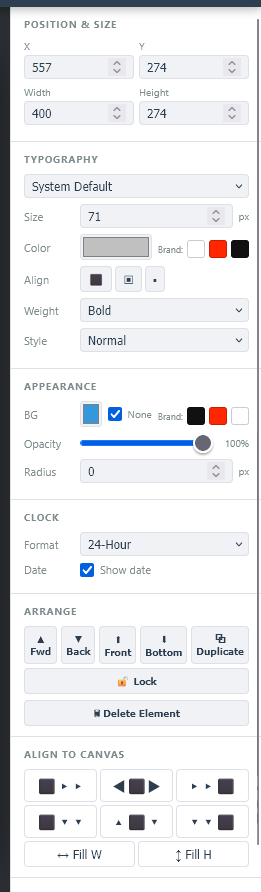

Click any element on the canvas to select it. The right panel fills with its properties.

Common controls:

Position & Size — exact X/Y/W/H in pixels, or drag handles on canvas
Font, size, colour, alignment — for text elements
Object fit — for images and video (cover, contain, fill)
Background colour / opacity — on any block
Border radius — rounds corners

Alignment tools (bottom of right panel when an element is selected):

Align to left, centre, right, top, middle, bottom edges of canvas
Fill Width / Fill Height — stretches element to canvas edge

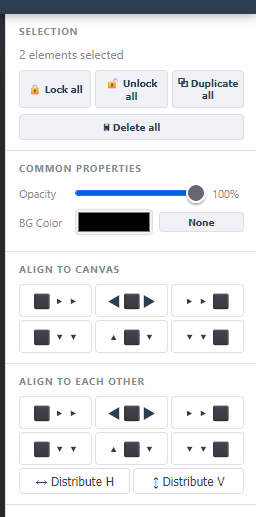

Multi-select: Hold Shift and click additional elements (or rubber-band drag across them). A multi-selection panel appears with bulk align, distribute, lock, duplicate and delete.

Part 7 — Layers

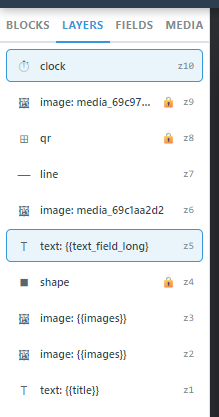

Click the Layers tab in the left panel to see every element stacked in order.

Drag rows to reorder
Click the eye icon to show/hide an element
Use ▲ Fwd / ▼ Back / ⬆ Front / ⬇ Bottom in the right panel to change stacking

Part 8 — Using Merge Tags (Dynamic Content)

Merge tags let content editors fill in real data when creating a post — Studio just defines the layout.

Step 1 — Open the Fields tab

Click Fields in the left panel. If a template is loaded, its defined fields appear here.

Step 2 — Drag a field onto the canvas

Each field appears as a draggable chip. Drop it onto the canvas — Studio places a correctly-typed block (text, image, video) with the merge tag {{field_name}} already inserted.

Step 3 — Or type a merge tag manually

Select any text block → in the content input on the right panel, type {{your_field_name}}. At display time the player replaces it with the editor’s input.

Common merge tags:

{{title}} — slide headline
{{body}} — paragraph text
{{image}} — photo from media library
{{city_name}} — used by the weather template
{{rss_feed_url}} — used by the RSS template

Part 9 — The Media Library

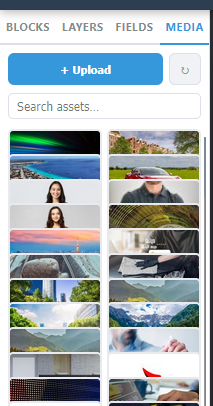

Click the Media tab in the left panel to see all uploaded files.

Click + Upload to add images or videos
Use the search bar to filter by filename
Drag any asset directly from the Media tab onto the canvas — Studio auto-creates an Image or Video block sized to the file

Slide Background: In the right panel with nothing selected, find Slide Background. Set a solid colour, or click Pick from Media Library to use an image or video as the full-slide background.

Part 10 — Snap & Grid

Click ⊞ Snap in the toolbar to toggle snap-to-grid on/off — elements will lock to the nearest grid line when moved or resized
Use − / + / Fit to zoom the canvas view in and out without affecting the output size

Part 11 — Preview

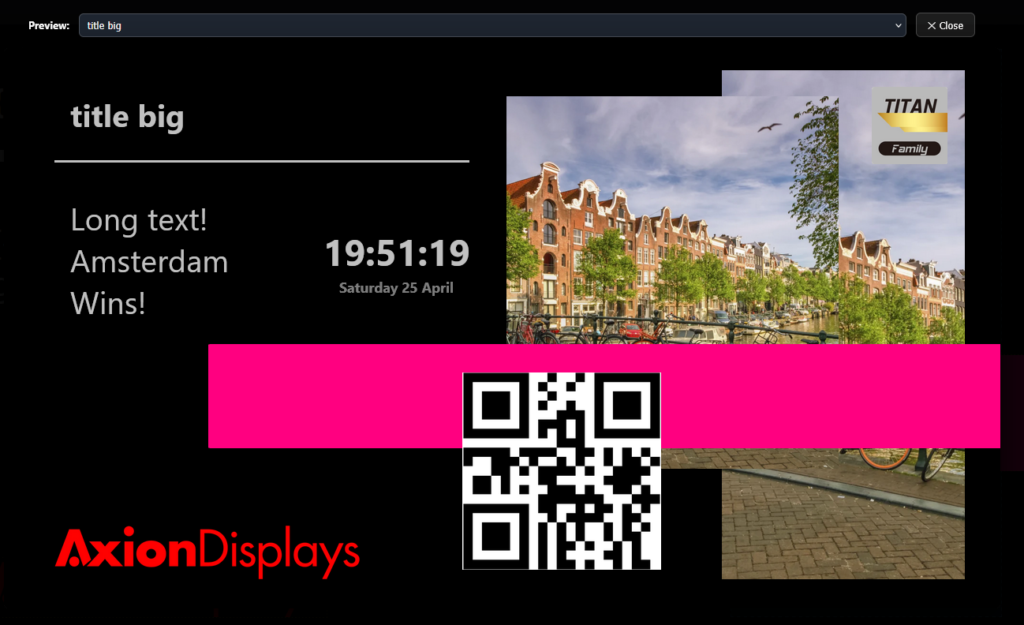

Click ▶ Preview in the toolbar (enabled once at least one element is on canvas).

A full-screen preview opens showing exactly how the slide will look on screen, with live clock ticking and merge tags shown as placeholders.

Click ✕ Close to return to editing.

Part 12 — Saving to Pilot

When your design is ready:

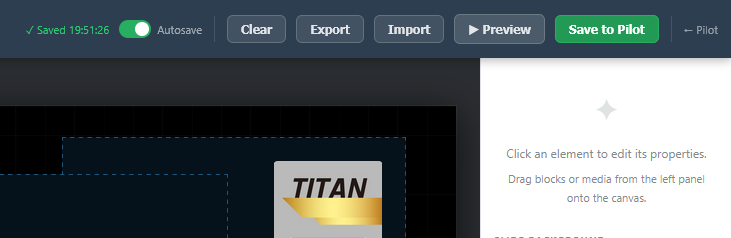

Click Save to Pilot (green button, top-right of toolbar)
Studio exports the layout as HTML/CSS and saves it to the template library
A confirmation appears — the template is now available in the main dashboard

Export / Import (backup):

Click Export to download the canvas as a .json file — useful for backups or moving templates between accounts
Click Import to restore from a .json file

Part 13 — Keyboard Shortcuts

Shortcut	Action
`Ctrl+Z`	Undo
`Ctrl+Y`	Redo
`Delete` / `Backspace`	Delete selected element
`Ctrl+D`	Duplicate selected
Arrow keys	Nudge selected element 1 px
`Shift` + click	Add to selection
`Ctrl+A`	Select all

Summary — Typical Workflow

  → Create a template in Pilot
  → Add the dynamic fields in the template creator
  → Open the Template in Studio
  → Pick template
  → Set canvas size if needed
  → Drag blocks onto canvas
  → Style each element in right panel
  → Add merge tags via Fields tab for dynamic content
  → Add media from Media tab
  → Preview
  → Save to Pilot
