Welcome to the documentation for the E-Vision 13500i/16000i/24000i WU & E-Vision 12000i/15000i/22000i 4K+ projectors.
About This Document
Follow the instructions in this manual carefully to ensure safe and long-lasting use of the projector. The manual uses the following symbols to highlight important safety and operational notes:
- WARNING: Indicates a danger of physical injury to yourself and/or damage to the equipment unless instructions are closely followed.
- ELECTRICAL WARNING: Indicates a danger of electrical shock unless instructions are closely followed.
- LASER WARNING: Indicates a potential hazard of eye exposure to laser radiation unless instructions are closely followed.
- LIGHT HAZARD WARNING: Indicates a danger of exposure to intensive light that may result in personal injury unless instructions are closely followed.
- NOTE: Indicates important information that you should read.
Key Features
Your Digital Projection product includes the following key features:
- WUXGA/4K+ projector.
- Support for Frame Sequential and Dual Pipe 3D formats (For E-Vision 13500i/16000i/24000i WU).
- HDBaseT® for transmission of uncompressed High Definition Video up to 100 m from the source.
- SDI with loop-through.
- Edge Blend with black level correction.
- Blanking control for custom input window sizing.
- Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
- Control via LAN and RS232.
- Motorised lens mount.
- Separate control of screen and source aspect ratio.
- Non-linear warp for irregular projection surfaces.
- Constant brightness mode maintains light output at selected levels.

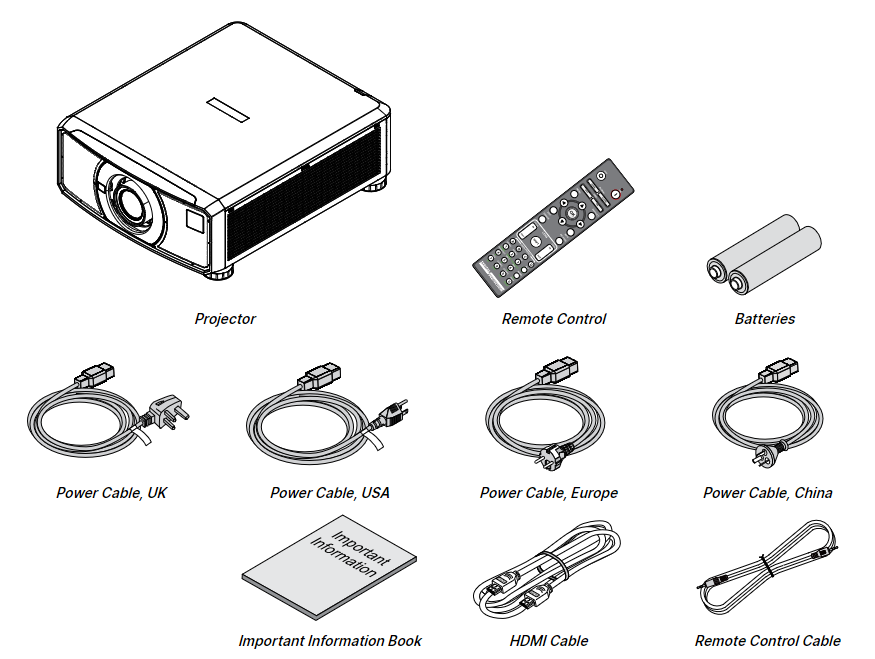

What’s in the Box?
Make sure your box contains everything listed below. If any pieces are missing, contact your dealer.
- Projector
- Remote Control (Only one remote is supplied with the projector)
- Batteries
- Power Cable (UK, USA, Europe, or China – Only the appropriate power cable for the destination territory is supplied)
- Important Information Book
- HDMI Cable
- Remote Control Cable
Important Notes: * Save and store the original box and packing materials, in case you ever need to ship your projector. * The projector is shipped without a lens.
