B7 Series Media Server
Uncompressed 4:4:4, High Resolution, High Framerate, High Bitdepth – the key features of our B7 series video servers. Up to 32K media resolution, 30Bit color depth, 120FPS, 2D or 3D playback with one or multiple units, frame- and genlocked for perfect synchronous running video channels. Integrated image warping and edge blending allow perfect projection on any surface.
The BRAINSALT B7 Series is a complete range of video servers with up to 24 running 2K, three 4K or one 8K video channels. All servers support uncompressed video playback in RGB mode with up to 30 Bits color depth. Perfect linear video playback in 2D, 3D, with up to 120 FPS. Various audio options, our camera based calibration system for multi-channel projection and our show control software Conductor completes the B7 Series to one of the most versatile solution available from a single vendor in the market.

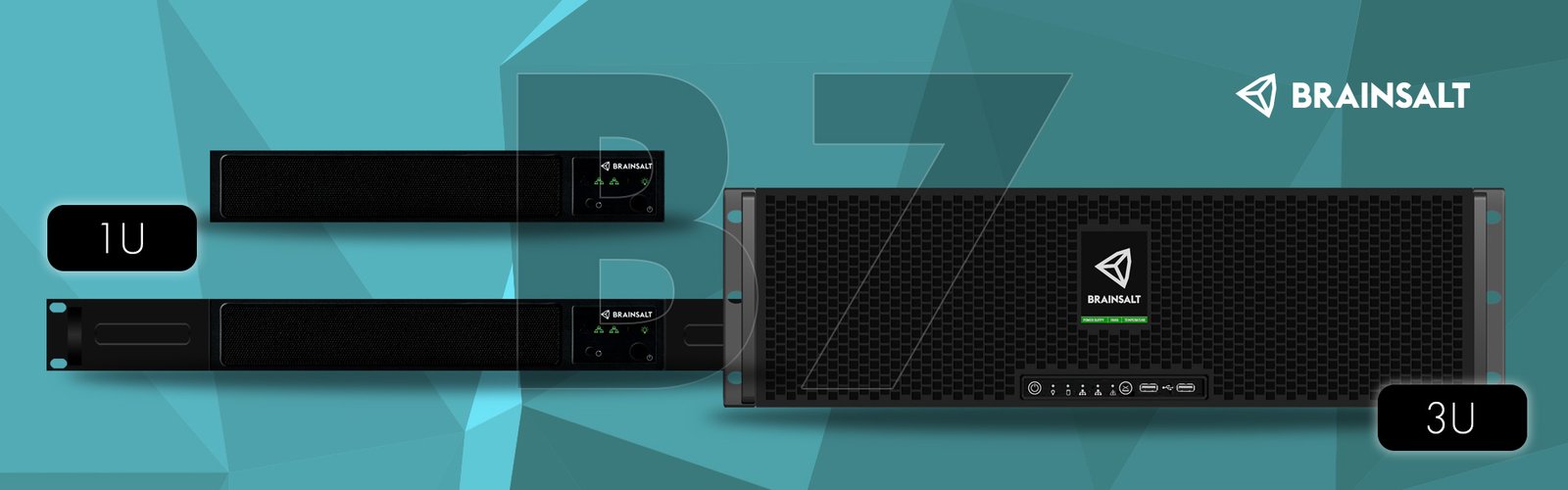

| Pro Models (3U) | Entry Models (3U) | Compact Models (1U) | |
| UHD/4K Outputs | up to 6 | up to 4 | up to 4 |
| HD/2K Outputs | up to 6 (up to 24 with optional hardware) | 4 | 4 |
| Max. GB/s | up to 7 | up to 3 | up to 3 |
| Storage | Swapable Enterprise SSDs in cage | Internal Enterprise SSDs | Internal Enterprise SSDs |
| OS drive | Dedicated | Dedicated | Shared with Media |
| GPU | High End Double Slot | Single Slot | Single Slot |
| Add-On Cards | Up to 2 | Up to 2 | None |
Configurator
Build your ideal Brainsalt playback system with our interactive media server configurator, easily customizing channels, performance, and form factor to perfectly match your specific project requirements.
Included Software with your Brainsalt Media Server
| Software | Description | Included |
 | Camera Based Motion Detection for Interactivity | ✔️ |
 | Core Media Server Software | ✔️ |
 | Camera Based Calibration of Multi-Channel Projections | Optional Module |
 | Motion, Effect and Show Programming | ✔️ |
 | Audio and Video Media Manager | ✔️ |
| Operating System and Tools | OS & System Management | ✔️ |
